不銹鋼正壓氣力輸送旋轉閥/風送式旋轉閥主要應用于壓差不高于2 bar(Kg/cm2)的負壓和正壓輸送系統的供料端給料?！　≌龎簹饬斔托D閥適用于工藝要求無殘留的粘性物料的氣力輸送供料端?！　≌龎簹饬斔托D閥設計特點：　　殼體及主要零部件采用精密鑄造，外形美觀;　　入口為圓形與料倉或管道連接，出口在下部側通;　　結構緊湊，節約空間，安裝方便;　　開放式轉子，低漏氣設計，8/10/12葉片設計;　　均壓排氣口，提高物料的填充率，降低進料口架橋堵料風險;　　可針對不同工況非標定向設計。【電話/微信咨詢：陳經理18068546632】　　常州同得利在強化企業管理的基礎上，依靠科技進步提高技術含量，先進的生產加工設備，領 先的管理理念，高素質的員工團隊，有效的質量保障體系和完善的售后服務，為制造高品質的產品提供可靠的保證，極大的滿足了各行業的需求，深受廣大客戶的信賴?！倦娫?微信咨詢：陳經理18068546632】 《掃二維碼-添加 陳經理 微信-咨詢不銹鋼正壓氣力輸送旋轉閥》　　The positive pressure pneumatic conveying rotary valve is suitable for the pneumatic conveying feeding end of viscous materials that require no residue in the process.　　Design features of positive pressure pneumatic conveying rotary valve:　　The shell and main components are precision cast, with a beautiful appearance;　　The inlet is circular and connected to the silo or pipeline, while the outlet is connected to the lower side;　　Compact structure, space saving, easy installation;　　Open rotor, low leakage design, 8/10/12 blade design;　　Equal pressure exhaust port, improve the filling rate of materials, and reduce the risk of bridging and blocking materials at the feeding port;　　It can be designed with non-standard orientation for different working conditions.

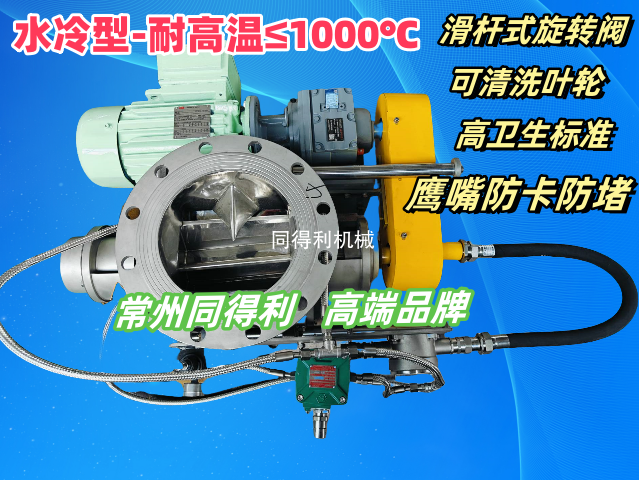

     這款旋轉閥集各種特性與一身，適用于輸送粉體，顆粒物料，主要用于食品，藥材，化工，鋰電等行業原料輸送?！倦娫?微信咨詢：陳經理18068546632】滑桿式旋轉閥：清洗前的拆卸。松開旋轉閥螺栓手柄，沿導柱將端蓋輕輕拉至極限，抽出葉輪，雙手握住葉輪兩端抽頸取出。清洗后，裝入旋轉閥葉輪(轉動葉輪使花鍵齒合)，推入端蓋(轉動活動軸柄使花鍵齒合)，擰緊螺栓手柄。水冷型旋轉閥：適用于溫度過高的物料，很好的降溫。旋轉閥閥體：采用整體澆鑄于不銹鋼全 面通水降溫。旋轉閥端蓋采用全 面通水降溫，避免軸承傳遞高溫。【電話/微信咨詢：陳經理18068546632】防卡式旋轉閥：主要用于塑料原料輸送。針對顆粒、片狀、塊狀物料，實現不卡料、不堵料。主要材質：不銹鋼304-310.             《掃二維碼-添加 陳經理 微信-咨詢產品》This rotary valve combines various features and is suitable for conveying powder and granular materials. It is mainly used for conveying raw materials in industries such as food, medicinal materials, chemicals, and lithium batteries.Sliding rod rotary valve: disassembly before cleaning. Release the handle of the rotary valve bolt, gently pull the end cover along the guide column to the limit, extract the impeller, and hold both ends of the impeller with both hands to remove the neck. After cleaning, install the rotary valve impeller (rotate the impeller to engage the spline teeth), push in the end cover (rotate the movable shaft handle to engage the spline teeth), and tighten the bolt handle.Water cooled rotary valve: suitable for materials with excessively high temperatures, providing excellent cooling. Rotary valve body: It is cast as a whole in stainless steel and fully ventilated for cooling. The rotary valve end cover adopts comprehensive water cooling to avoid bearing transmission of high temperature.Anti card rotary valve: mainly used for conveying plastic raw materials. For granular, flake, and block materials, achieve no material jamming or blockage. Main material: stainless steel 304-310.

內襯特氟龍星型卸料閥的定義和特點：內襯特氟龍星型卸料閥是一種將特氟龍(PTFE)或聚四氟乙烯(F4)等特殊材料涂覆在設備內部的一種技術。這種技術可以將設備的內部表面涂覆上一層特殊材料，從而提高設備的耐腐蝕性、耐高溫性、防粘性、耐磨損性和耐化學性等方面的性能。內襯特氟龍的特點有：耐腐蝕性好：特氟龍材料是化學惰性的，能夠在高濃度酸堿和其他有機物中具有高度的化學穩定性。2. 耐高溫性好：特氟龍材料能承受高達+260℃的高溫工況。3. 防粘附性能好：特氟龍對粘附物質具有特殊的抗粘性能，可以避免流體因黏附而產生的結垢和堆積。【電話/微信咨詢：陳經理18068546632】4. 耐磨損性能好：特氟龍表面硬度高、耐磨損，能夠有效地抵御設備內部因物料磨損而導致的損壞。5. 應用范圍廣：內襯特氟龍廣泛應用于化工、醫藥、食品等粉料/顆粒料/粉體物料，特別適用于在強酸、強堿、高溫、高壓和高粘度等特殊工藝條件下的設備內襯。             《掃二維碼-添加 陳經理 微信-咨詢產品》The lined PTFE star shaped discharge valve is a technology that coats special materials such as PTFE or polytetrafluoroethylene (F4) inside the equipment. This technology can coat the internal surface of the equipment with a layer of special material, thereby improving the performance of the equipment in terms of corrosion resistance, high temperature resistance, anti adhesion, wear resistance, and chemical resistance. The characteristics of PTFE lining include:1. Good corrosion resistance: Teflon material is chemically inert and can have high chemical stability in high concentrations of acids, bases, and other organic compounds.2. Good high temperature resistance: Teflon material can withstand high temperature conditions up to+260 ℃.3. Good anti adhesion performance: Teflon has special anti adhesion properties for adhesive substances, which can avoid scaling and accumulation of fluids due to adhesion.4. Good wear resistance: Teflon has high surface hardness and wear resistance, which can effectively resist damage caused by material wear inside the equipment.5. Wide application range: PTFE lining is widely used in chemical, pharmaceutical, food and other powder/particle/powder materials, especially suitable for equipment lining under special process conditions such as strong acid, strong alkali, high temperature, high pressure and high viscosity.

　　不銹鋼內襯尼龍快拆式卸料閥　　采用加厚葉輪設計，與殼體配合間隙小，結構精密，使用過程中不易漏風不易漏料，防堵耐用?！　∶芊鈨?yōu)越，用感無憂：結構穩定，密封性能良好?？捎糜诜哿?、小顆粒物料，在正負極壓差吸送過程中將物料分離排出?！　∵m用于鋰電正極材料輸送，高鎳三元材料，磷酸鐵鋰。閥體、端蓋外表面采用不銹鋼304.物料接觸8-10mm氧化鋁陶瓷工藝等。都可以滿足工況耐磨，耐溫尤為突出?！　】刹鹦度~輪：便于快速拆卸清洗旋轉閥的物料接觸面。　　驅動方式：鏈驅動/馬達直連驅動?！　恿ε渲茫簲[線針輪減速機，Y系列電機(可按客戶指定動力配置)　　材質：不銹鋼系列　　Stainless steel lined nylon quick release discharge valve　　Adopting a thickened impeller design, the clearance between the impeller and the shell is small, the structure is precise, and it is not easy to leak air or materials during use, and it is durable and anti clogging.　　Superior sealing and worry free use: stable structure and good sealing performance. Can be used for powder and small particle materials, to separate and discharge materials during the positive and negative pressure difference suction process.　　Suitable for transporting lithium battery cathode materials, high nickel ternary materials, and lithium iron phosphate. The outer surface of the valve body and end cover is made of stainless steel 304. The material is in contact with 8-10mm alumina ceramic technology, etc. Both can meet the wear resistance requirements of working conditions, with outstanding temperature resistance.　　Detachable impeller: facilitates quick disassembly and cleaning of the material contact surface of the rotary valve.　　Drive mode: chain drive/motor direct connection drive.　　Power configuration: cycloidal pinwheel reducer, Y-series motor (can be configured according to customer specifications)　　Material: Stainless steel series.

　　鋰電專用尼龍旋轉閥由本公司自主研制，適用于不可接觸金屬物料的卸料。箱體、葉輪以及端蓋，都采用整塊尼龍銑削加工，結構牢靠，運行無噪音，相較于陶瓷閥，可以節省成本，是鋰電行業新寵?！　∶芊鈨?yōu)越，用感無憂：結構穩定，密封性能良好?？捎糜诜哿?、小顆粒物料，在正負極壓差吸送過程中將物料分離排出?！　′囯妼Ｓ媚猃埿D閥的特點　　1、耐高溫性能好：尼龍旋轉閥可以在高溫環境下正常工作，能夠承受高溫物料的沖擊和摩擦，確保設備的穩定性和安全性。　　2、密封性能優越：尼龍旋轉閥采用特殊的密封圈，能夠有效防止物料泄漏和外界灰塵進入設備，設備的正常運行。　　3、耐腐蝕性好：尼龍旋轉閥具有良好的耐酸堿性能，可以在酸堿腐蝕性物料的環境下正常工作，有效延長設備的使用壽命?！　?、耐磨性強：尼龍旋轉卸料閥采用高性能改性尼龍材料制作，具有極高的硬度和耐磨性，能夠在高速物料流動和摩擦的環境下長時間使用。　　The lithium battery specific nylon rotary valve is independently developed by our company and is suitable for unloading non-contact metal materials. The casing, impeller, and end cover are all processed using a single piece of nylon milling, with a reliable structure and noiseless operation. Compared to ceramic valves, they can save costs and are a new favorite in the lithium battery industry.　　Superior sealing and worry free use: stable structure and good sealing performance. Can be used for powder and small particle materials, to separate and discharge materials during the positive and negative pressure difference suction process.　　Characteristics of lithium battery specific nylon rotary valve　　1. Good high-temperature resistance: Nylon rotary valves can work normally in high-temperature environments and can withstand the impact and friction of high-temperature materials, ensuring the stability and safety of the equipment.　　2. Superior sealing performance: The nylon rotary valve adopts a special sealing ring, which can effectively prevent material leakage and external dust from entering the equipment, ensuring the normal operation of the equipment.　　3. Good corrosion resistance: Nylon rotary valves have good acid and alkali resistance, and can work normally in environments with acid and alkali corrosive materials, effectively extending the service life of the equipment.　　4. Strong wear resistance: The nylon rotary discharge valve is made of high-performance modified nylon material, which has extremely high hardness and wear resistance, and can be used for a long time in environments with high-speed material flow and friction.

　　此產品尼龍旋轉閥由本公司自主研制，適用于不可接觸金屬物料的卸料。箱體、葉輪以及端蓋，都采用整塊尼龍銑削加工，結構牢靠，運行無噪音，相較于陶瓷閥，可以節省成本，是鋰電行業新寵。　　采用加厚葉輪設計，與殼體配合間隙小，結構精密，使用過程中不易漏風不易漏料，防堵耐用。　　密封優越，用感無憂：結構穩定，密封性能良好?？捎糜诜哿稀⑿☆w粒物料，在正負極壓差吸送過程中將物料分離排出。　　耐磨性強：尼龍旋轉閥采用高性能陶瓷材料制作，具有極高的硬度和耐磨性，能夠在高速物料流動和摩擦的環境下長時間使用?！　∧透邷匦阅芎茫耗猃埿D閥可以在高溫環境下正常工作，能夠承受高溫物料的沖擊和摩擦，確保設備的穩定性和安全性?！　〕Ｖ萃美麢C械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粉料、超微粉體等。　　This nylon rotary valve is independently developed by our company and is suitable for unloading non-contact metal materials. The casing, impeller, and end cover are all processed using a single piece of nylon milling, with a reliable structure and noiseless operation. Compared to ceramic valves, they can save costs and are a new favorite in the lithium battery industry.　　Adopting a thickened impeller design, the clearance between the impeller and the shell is small, the structure is precise, and it is not easy to leak air or materials during use, and it is durable and anti clogging.　　Superior sealing and worry free use: stable structure and good sealing performance. Can be used for powder and small particle materials, to separate and discharge materials during the positive and negative pressure difference suction process.　　Strong wear resistance: Nylon rotary valves are made of high-performance ceramic materials, which have extremely high hardness and wear resistance, and can be used for a long time in environments with high-speed material flow and friction.　　Good high-temperature resistance: Nylon rotary valves can work normally in high-temperature environments and can withstand the impact and friction of high-temperature materials, ensuring the stability and safety of the equipment.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production, and customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valve can handle various types of particles, flakes, blocks, powders, and ultrafine powders in industries such as lithium batteries, steel mills, power plants, cement, mines, environmental protection, plastics, chemicals, food, and pharmaceuticals.

　　剛性葉輪給料機俗稱卸料器，又叫卸灰閥。主要適用于發電廠、水泥廠、化工廠等行業除塵灰塵清理和包裝機及專 業輸送配料系統中，作為輸送干燥粉狀物料時鎖氣或定量給料用，也可用于除塵器及空氣預熱器的灰斗下出灰，其結構簡單，性能穩定，操作維修方便，是輸送、卸料、配料系統中理想的配套件?！　?、結構緊湊：采用行星轉動原理、純銅電機，輸入輸出在同一軸線上，而且有與電機直聯一體的獨特性，體積小，重量輕，因而結構緊湊造型美觀新樣。　　2、耐磨性高：運行可靠平穩，噪音低，故障少，壽命長，耐磨性高。　　3、過載能力強：卸料器具有過載能力強，耐沖擊慣性力矩小，適用于啟動頻繁和正反轉?！　?、使用壽命長：軸承、齒箱、遠離閥體避免高溫灰塵的影響，前后密封性能好，防止灰塵外泄，延長機動件，潤滑系統的使用壽命?！　?、支持定制/替代進口品牌：用戶如有特殊規格要求，可以按照客戶要求定做?！　〕Ｖ萃美麢C械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粉料、超微粉體等?！　he rigid impeller feeder is commonly known as the unloader, also known as the ash discharge valve. It is mainly suitable for dust removal, cleaning, packaging machines, and professional conveying and batching systems in industries such as power plants, cement plants, and chemical plants. It is used for air locking or quantitative feeding when conveying dry powder materials. It can also be used for ash discharge under the ash hopper of dust collectors and air preheaters. Its structure is simple, performance is stable, and operation and maintenance are convenient. It is an ideal supporting component in conveying, unloading, and batching systems.　　1. Compact structure: Adopting the principle of planetary rotation and a pure copper motor, the input and output are on the same axis, and it has the unique feature of being directly connected with the motor. It has a small volume and light weight, resulting in a compact and beautiful design.　　2. High wear resistance: reliable and stable operation, low noise, few faults, long service life, and high wear resistance.　　3. Strong overload capacity: The unloader has strong overload capacity, low impact resistance inertia moment, and is suitable for frequent starting and forward and reverse rotation.　　4. Long service life: bearings, gearboxes, and valves are kept away from the valve body to avoid the influence of high temperature dust. The front and rear sealing performance is good, preventing dust leakage and extending the service life of motor parts and lubrication systems.　　5. Support customization/replacement of imported brands: If users have special specifications, they can customize according to customer requirements.　　Changzhou Tongdeli Machinery Factory has many years of experience in research and development, production, and customization of discharge valve rotary valves, adhering to the principle of quality first and customer first. Our rotary valve can handle various types of particles, flakes, blocks, powders, and ultrafine powders in industries such as lithium batteries, steel mills, power plants, cement, mines, environmental protection, plastics, chemicals, food, and pharmaceuticals.

　　本產品鎖氣閥/電動鎖氣器適用于火力發電廠除塵器、空氣預熱器，省煤器等設備的出料口，或干灰輸送管道中，作鎖氣及均勻給料。也可用于化工廠、水泥廠、糧食加工廠部門的氣力運輸管道中?！倦娫?微信咨詢：陳經理18068546632】          《掃二維碼-添加 陳經理 微信-咨詢鎖氣閥》　　This product's air lock valve/electric air lock is suitable for the discharge ports of dust collectors, air preheaters, economizers and other equipment in thermal power plants, or in dry ash conveying pipelines, for air lock and uniform feeding. It can also be used in pneumatic transportation pipelines of chemical plants, cement plants, and grain processing plants.

　　旋轉閥的正壓氣力輸送設備,支撐架的上方安裝有旋轉閥,旋轉閥的進口安裝有儲料機,旋轉閥的出口連通有正壓氣力輸送.通過在連接管上連通輔助氣管,并將輔助氣管引至儲料筒與儲料筒貫通,當儲料筒內部下料不通暢的時候,打開手閥,使正壓氣力輸送裝置輸送的氣流進行分流,讓氣流從儲料筒的上方進入到儲料筒的內部粉料進行加壓將物料向儲料筒的底部沖擊,從而使粉料能夠順利的通過儲料筒和旋轉閥體的連接處,達到了提升物料輸送效率的效果.　　四氟旋轉閥/卸料閥/放料閥采用四氟材料制造，具有極強的耐腐蝕性。它能夠承受各種強酸、強堿、有機溶劑和腐蝕性介質的侵蝕，確保在化學反應過程中旋轉閥門的穩定和可靠運行?！　∷姆鷥纫r旋轉閥表面具有良好的不粘附性，能夠防止旋轉閥表面附著物的黏附，避免管道物料：粉體/顆粒料在長期運行過程中出現結垢、石灰積垢等現象，從而提高了旋轉卸料閥的效率?！倦娫?微信咨詢：陳經理18068546632】         《掃二維碼-添加 陳經理 微信-咨詢 四氟旋轉閥》　　The positive pressure pneumatic conveying equipment with a rotary valve is installed above the support frame. The inlet of the rotary valve is equipped with a material storage machine, and the outlet of the rotary valve is connected to positive pressure pneumatic conveying.　　By connecting the auxiliary air pipe to the connecting pipe and connecting it to the storage cylinder, when the feeding inside the storage cylinder is not smooth, the manual valve is opened to divert the airflow conveyed by the positive pressure pneumatic conveying device, allowing the airflow to enter the interior of the storage cylinder from above and pressurize the powder to impact the bottom of the storage cylinder, so that the powder can smoothly pass through the connection between the storage cylinder and the rotating valve body, achieving the effect of improving material conveying efficiency.

　　防卡關風機/旋轉閥/卸料閥/鎖氣閥主要用于化工，食品，藥材，鋰電原料輸送?！　♂槍Ψ垠w、顆粒、片狀、塊狀物料，實現不卡料、不堵料?！　》揽P風機主要材質：碳鋼、鑄鐵、不銹鋼304-310、鋁合金、鈦合金、陶瓷系列等?！倦娫?微信咨詢：陳經理18068546632】　　關風機入口/出口：入口為圓口并配有透明視窗，以便觀察物料的流動狀況;出口為方形增大了出口面積使物料順利排出?！　◎寗臃绞剑烘滘寗?馬達直連驅動口?！　恿ε渲茫簲[線針輪減速機、Y系列電機(可按需方指定動力配置)，排氣口增壓輸送時將葉輪旋轉帶出的高壓氣體通過排氣口送至排氣裝置，提高填充效率。【電話/微信咨詢：陳經理18068546632】          《掃二維碼-添加 陳經理 微信-咨詢防卡關風機》　　Anti jamming fans/rotary valves/discharge valves/lock valves are mainly used for conveying chemical, food, medicinal materials, and lithium battery raw materials.　　For powder, particle, flake, and block materials, achieve no material jamming or blockage.　　The main materials of the anti jamming fan include carbon steel, cast iron, stainless steel 304-310. aluminum alloy, titanium alloy, ceramic series, etc.　　Shut down the inlet/outlet of the fan: The inlet is circular and equipped with a transparent window for observing the flow of materials; The square shape of the outlet increases the outlet area and facilitates the smooth discharge of materials.　　Drive mode: chain drive/motor directly connected to the drive port.　　Power configuration: Cycloid pinwheel reducer, Y-series motor (can be configured according to the power requirements specified by the demand). When the exhaust port is pressurized and transported, the high-pressure gas carried out by the impeller rotation is sent to the exhaust device through the exhaust port to improve the filling efficiency.
