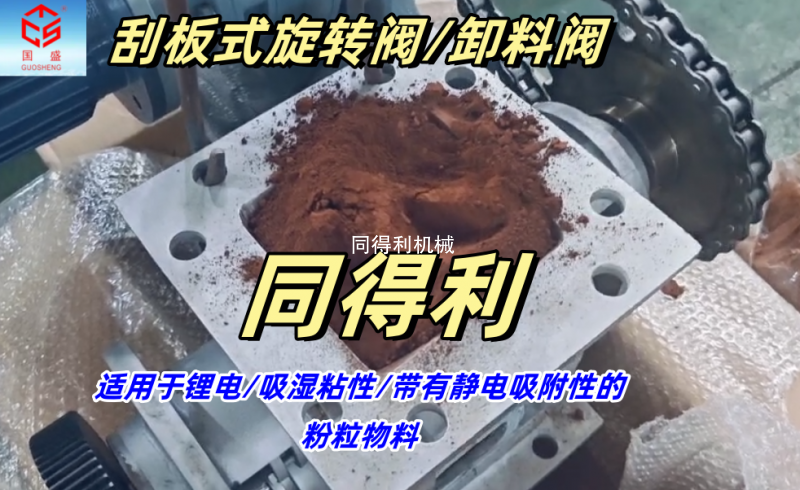

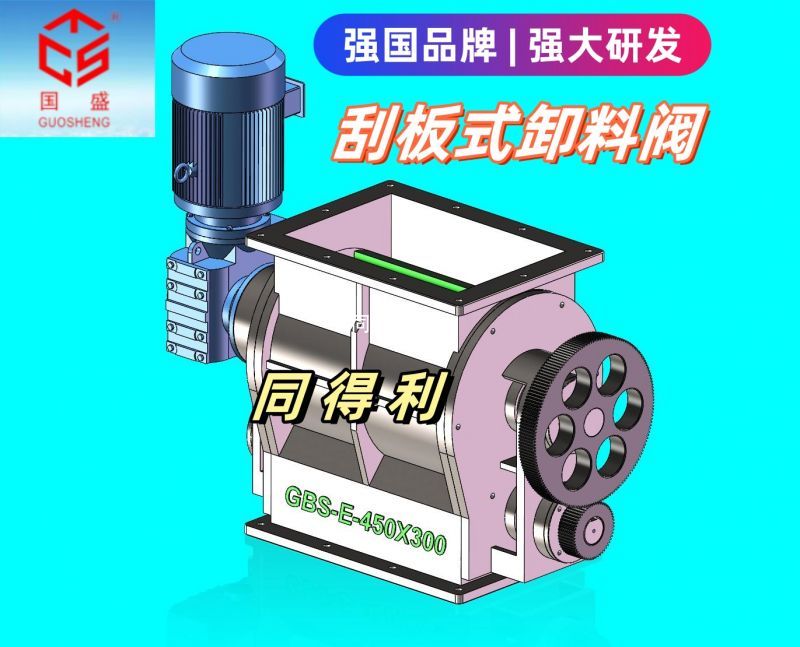

對于由于潮濕高水分黏附的粉粒料和由于靜電易附著流動性差的粉粒料，非常容易架橋或粘附填充在旋轉閥的葉片間空腔中不脫落排卸下來，將葉子空腔“糊”住，給氣力輸送和旋轉供料器操作帶來很大困難。常州同得利提供的刮板式旋轉閥/卸料閥,其特點是采用圓弧淺腔葉輪和一個能隨之轉動的刮板，旋轉的刮板能將附著在葉片上的料粒掛落清除，能解決粉粒料在葉片上粘接的問題。使定量供料和排料更加順暢，比較適用于容易導致堵塞的粉粒體，能提供150-5000mm的各種尺寸的方形和圓形口徑。【電話/微信咨詢：陳經理18068546632】　　(GBS)刮板式旋轉閥/卸料閥/星型卸料器適用于具有吸濕粘性和帶有靜電吸附性的粉粒物料、物料架橋結塊?！　￠y體下部的旋轉刮板自動將附在轉子料斗內的物料刮落。　　閥體上開有清理口，便于定期清除旋轉閥內部的物料，設備帶扭力保護器。　　提供鏈驅動、馬達直連驅動?！　〔馁|(zhì)：碳鋼、不銹鋼、陶瓷、合金系列等。按客戶需求定制?！倦娫?微信咨詢：陳經理18068546632】　　刮板式自清潔旋轉閥/卸料閥，包括電機和殼體，其特征在于弧形葉輪和旋轉刮板，弧形葉輪安裝在殼體內部，弧形葉輪通過電機驅動;旋轉刮板設置在弧形葉輪的下方，刮板卸料閥旋轉刮板的頂部與弧形葉輪的弧面相接觸，卸料閥旋轉刮板與弧形葉輪之間通過殼體外的齒輪傳動機構進行同步反向轉動。       常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粘料、粉料、超微粉體等?！倦娫?微信咨詢：陳經理18068546632】             《掃二維碼-添加 陳經理 微信-咨詢刮板式旋轉閥》　　For powder particles with high moisture adhesion due to humidity and poor flowability due to static electricity, it is very easy to bridge or adhere and fill the cavity between the blades of the rotary valve without falling off and being discharged, which "sticks" the leaf cavity and brings great difficulties to the operation of pneumatic conveying and rotary feeders. The scraper type rotary valve/discharge valve provided by Changzhou Tongdeli is characterized by using a curved shallow cavity impeller and a rotating scraper. The rotating scraper can remove the particles attached to the blades and solve the problem of powder particles sticking to the blades. Make quantitative feeding and discharging smoother, more suitable for powder particles that are prone to clogging, and can provide various sizes of square and circular diameters ranging from 150-5000mm.　　(GBS) Scraper type rotary valve/discharge valve/star shaped unloader is suitable for powder materials with hygroscopic viscosity and electrostatic adsorption, as well as material bridging and agglomeration.　　The rotating scraper at the bottom of the valve body automatically scrapes off the material attached to the rotor hopper.　　There is a cleaning port on the valve body for regular removal of materials inside the rotary valve, and the equipment is equipped with a torque protector.　　Provide chain drive and motor direct drive.　　Materials: carbon steel, stainless steel, ceramics, alloy series, etc. Customize according to customer needs.　　Scraper type self-cleaning rotary valve/discharge valve, comprising a motor and a housing, characterized by an arc-shaped impeller and a rotating scraper. The arc-shaped impeller is installed inside the housing and is driven by a motor; The rotating scraper is set below the arc-shaped impeller, and the top of the scraper discharge valve rotating scraper is in contact with the arc-shaped surface of the impeller. The rotating scraper of the discharge valve and the arc-shaped impeller rotate synchronously and in reverse through a gear transmission mechanism outside the housing.

　　正壓稀相氣力輸送系統是采用羅茨風機或者羅茨空壓泵作為動力源。利用空氣動能作為輸送介質，物料以比較高的速度并以分散懸浮的狀態在管道中輸送。輸送的壓力一般根據工況條件不同可在幾千帕到幾百千帕范圍內調整。　　利用氣體動壓，物料以較高速度在輸送管道中前進(8m/s-25m/s )，輸送壓力沿輸送管道逐漸降低;　　連續輸送，輸送流態、輸送壓力與輸送速度、料氣比基本保持穩定;　　在一定情況下，輸送距離較正壓密相短、較負壓稀相長;　　輸送過程中，羅茨鼓風機的出口空氣溫度較高;　　為了防止串氣，系統需要配備密閉性較好的旋轉供料閥/旋轉閥/星型卸料閥/關風機卸料器?！倦娫?微信咨詢：陳經理18068546632】　　正壓輸送旋轉閥/風送式旋轉閥主要用于化工、食品、藥材、鋰電、塑料原料輸送?！　♂槍?duì)物料粘接，風力直吹轉子清理物料?！　≈饕馁|(zhì)：不銹鋼304-316、鈦合金、鋁合金、各種合金。       《掃二維碼-添加 陳經理 微信-咨詢鏈驅動正壓旋轉閥》　　The positive pressure dilute phase pneumatic conveying system uses Roots blower or Roots air pump as the power source. Using air kinetic energy as a conveying medium, materials are transported in pipelines at relatively high speeds and in a dispersed and suspended state. The conveying pressure can generally be adjusted within the range of several thousand pascals to several hundred kilopascals according to different working conditions.　　Using gas dynamic pressure, the material advances at a high speed in the conveying pipeline (8m/s-25m/s), and the conveying pressure gradually decreases along the conveying pipeline;　　Continuous conveying, the conveying flow state, conveying pressure and speed, and material gas ratio remain basically stable;　　In certain circumstances, the conveying distance is shorter than that of the positive pressure dense phase and longer than that of the negative pressure dilute phase;　　During the conveying process, the outlet air temperature of the Roots blower is relatively high;　　In order to prevent air leakage, the system needs to be equipped with a well sealed rotary feeding valve/rotary valve/star shaped discharge valve/shut-off fan discharge device.　　Positive pressure conveying rotary valve/pneumatic rotary valve is mainly used for conveying chemical, food, medicinal materials, lithium batteries, and plastic raw materials.

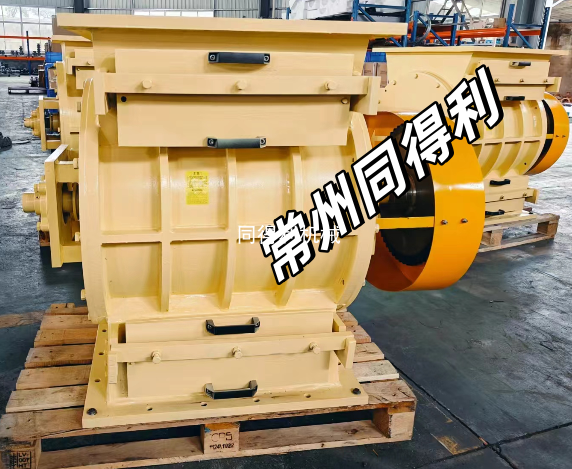

　　剛性旋轉閥/卸料閥/旋轉卸料器/旋轉供料器常用于難處理的物料, 適用于粉料、顆粒和磨料(堅硬物料、塊狀物料、高溫物料)的旋轉卸料閥。大型號旋轉閥，為高流量設計，適用于重負荷和嚴苛的應用環境，壓力可達2 bar(g) [20 psi(g)]可抵抗嚴苛的沖擊力，承受高溫達300℃，壓力范圍：1.4 巴 [20 psi(g)]軸封：聚四氟乙烯復合密封，空氣吹掃。外側軸承：通過密封和物料掉落口將物料和軸承隔開。　　剛性旋轉閥主要用于鋼廠、電廠、水泥、礦山等行業。葉輪穩定性好、圓滑過度、無夾角、扭矩更大?！倦娫?微信咨詢：陳經理18068546632】　　1、結構緊湊：采用行星轉動原理、純銅電機，輸入輸出在同一軸線上，而且有與電機直聯一體的獨特性，體積小，重量輕，因而結構緊湊造型美觀新樣。　　2、耐磨性高：運行可靠平穩，噪音低，故障少，壽命長，耐磨性高?！　?、過載能力強：卸料器具有過載能力強，耐沖擊慣性力矩小，適用于啟動頻繁和正反轉?！　?、使用壽命長：軸承、齒箱、遠離閥體避免高溫灰塵的影響，前后密封性能好，防止灰塵外泄，延長機動件，潤滑系統的使用壽命?！　?、支持定制/替代進口品牌：用戶如有特殊規格要求，可以按照客戶要求定做。【電話/微信咨詢：陳經理18068546632】　　常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粘料、粉料、超微粉體等?！倦娫?微信咨詢：陳經理18068546632】            《掃二維碼-添加 陳經理 微信-咨詢剛性旋轉閥》　　Rigid rotary valves/discharge valves/rotary unloaders/rotary feeders are commonly used for difficult to handle materials, suitable for rotary discharge valves of powders, particles, and abrasives (hard materials, block materials, high-temperature materials). Large rotary valve, designed for high flow, suitable for heavy loads and harsh application environments, with a pressure of up to 2 bar (g) [20 psi (g)], can resist harsh impact forces, withstand high temperatures up to 300 ℃, pressure range: 1.4 bar (g) [20 psi (g)], shaft seal: PTFE composite seal, air blowing. Outer bearings: Separate materials and bearings through seals and material drop ports.　　Rigid rotary valves are mainly used in industries such as steel mills, power plants, cement, and mining. The impeller has good stability, smooth transition, no angle, and greater torque.　　1. Compact structure: Adopting the principle of planetary rotation and a pure copper motor, the input and output are on the same axis, and it has the unique feature of being directly connected to the motor. It is small in size and light in weight, resulting in a compact structure and beautiful appearance.　　2. High wear resistance: reliable and stable operation, low noise, few faults, long service life, high wear resistance.　　3. Strong overload capacity: The unloader has strong overload capacity, low impact resistance inertia moment, and is suitable for frequent starting and forward and reverse rotation.　　4. Long service life: bearings, gearboxes, and valves are kept away from the valve body to avoid the influence of high temperature dust. The front and rear sealing performance is good, preventing dust leakage and extending the service life of motor components and lubrication systems.　　5. Support customization/substitution of imported brands: If users have special specifications requirements, they can customize according to their needs.

　　根據物料輸送和下料口的溫度不同，因?yàn)闇囟葘?duì)機體膨脹有影響，以及對軸承和油封系統不利，我廠設計了耐高溫型外裝式結構關風機旋轉閥，它把運轉部分與物料接觸的箱體部分分離開來，可以安全地把軸承運轉和油封系統不受高溫影響而正常工作，此類產品不但耐高溫，還可以針對吸濕性物料和金屬性粉末的輸送和卸料，具有很好的效果。因?yàn)檫@類物體有穿透性，穿透油封裝置，物料進入軸承而損壞機械，正是有外裝的特點，它不會和物料接觸?！　⌒D(zhuǎn)閥主要結構：外殼金屬;物料接觸部分：內襯陶瓷(也可尼龍、四氟、特氟龍、聚氨酯、不銹鋼、合金等)。針對物料粘接，風力直吹轉子清理?？觳鹎謇?，快速?gòu)?fù)位。可拆卸葉輪：便于快速拆卸清洗旋轉閥的物料接觸面。驅動方式：鏈驅動/馬達直連驅動?！倦娫?微信咨詢：陳經理18068546632】   《掃二維碼-添加 陳經理 微信-咨詢鏈驅動高溫清洗型旋轉閥》

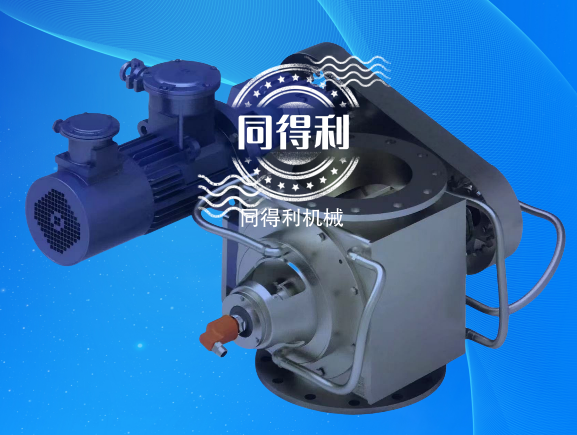

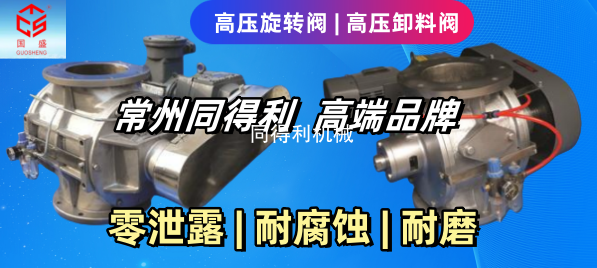

　　旋轉閥的工作原理主要涉及電動機驅動減速機，通過聯軸器或鏈輪使旋轉閥的轉子旋轉。在旋轉過程中，材料位于旋轉葉片的空間內，葉片的旋轉將材料帶到排出口，材料的自重使其流入輸送系統或儲藏室。這種工作方式使得旋轉卸料閥能夠均勻、連續地向輸料管供料，保證氣力輸出管內的氣體和固體物質保持穩定，從而確保氣力輸送系統的正常工作。同時，旋轉閥還具有鎖氣作用，能夠隔斷卸料閥上下部的氣壓。?【電話/微信咨詢：陳經理18068546632】　　高壓旋轉閥主要用于化工，食品，藥材，鋰電原料輸送?！　♂槍?duì)有腐蝕物料、有害氣體，實現零泄漏、耐腐蝕、耐磨?！　「邏盒D(zhuǎn)卸料閥主要材質：不銹鋼、哈氏合金、鈦合金、鋁合金、各種合金?！　〕Ｖ萃美峁╂滘?qū)動、直連驅動多種安裝方式。　　我公司始終堅持“質量第 一、用戶至 上”的宗旨，服務于社會，誠信于業界，竭誠歡迎世界各地的業界好友光臨指導，洽談合作。【電話/微信咨詢：陳經理18068546632】      《掃二維碼-添加 陳經理 微信-咨詢鏈驅動高壓旋轉閥》　　The working principle of a rotary valve mainly involves an electric motor driving a reducer, which rotates the rotor of the rotary valve through a coupling or sprocket. During the rotation process, the material is located in the space of the rotating blades, and the rotation of the blades brings the material to the discharge outlet. The self weight of the material causes it to flow into the conveying system or storage room. This working method enables the rotary discharge valve to uniformly and continuously feed the conveying pipe, ensuring that the gas and solid substances in the pneumatic output pipe remain stable, thereby ensuring the normal operation of the pneumatic conveying system. At the same time, the rotary valve also has a locking effect, which can block the air pressure at the upper and lower parts of the discharge valve. ?　　High pressure rotary valves are mainly used for transporting chemical, food, medicinal materials, and lithium battery raw materials.　　To achieve zero leakage, corrosion resistance, and wear resistance for corrosive materials and harmful gases.　　The main materials of high-pressure rotary discharge valve are stainless steel, Hastelloy, titanium alloy, aluminum alloy, and various alloys.　　Changzhou Tongdeli provides multiple installation methods for chain drive and direct drive.　　Our company always adheres to the principle of "quality first, customer first", serves society, and is honest in the industry. We sincerely welcome industry friends from all over the world to visit and guide us, and negotiate cooperation.

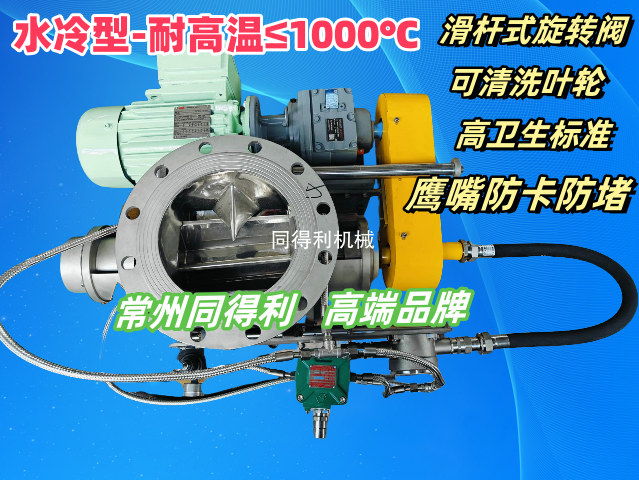

　　高溫旋轉閥/水冷式旋轉閥/高溫卸料閥，其外殼、蓋板、轉子以及軸承部件都采用循環水冷卻，密封材料和軸承部分能承受在高溫下正常運轉，適用于鋼廠、電廠、礦山、水泥、鍋爐、鋰電、化工、污泥逢燒、桔桿逢燒、窯底出料、鍋爐排料、真空殺菌等行業。也可根據用戶要求進行結構設計制造，確保安全正常工作。葉輪主軸采用全 面通水降溫，避免高溫形變，影響同心度。【電話/微信咨詢：陳經理18068546632】　　需求1：變頻給料閥/高溫旋轉閥：焙燒車間，用途：控制硫磺倉內硫磺的供給量。物料堆密度 t/m3：1.5.輸送量 t/h：5.尺寸：DN200.閥門高度/mm：H≈420.閥體(上下殼體)材質：304.葉輪：304.物料溫度：200~400℃，等級：10kv，380V/220V，50Hz。　　需求2：粉體旋轉閥，4英寸卡接口，DN100 316L材質 手動 物料是有制藥用粉末，高溫度200℃蒸汽滅菌?！　⌒枨?：物料：脫硫灰粉料，耐高溫:400-500度，目前用的不銹鋼材質。【電話/微信咨詢：陳經理18068546632】        《掃二維碼-添加 陳經理 微信-咨詢鏈驅動高溫旋轉閥》　　High temperature rotary valve/water-cooled rotary valve/high temperature discharge valve, its shell, cover plate, rotor, and bearing components are all cooled by circulating water. The sealing material and bearing parts can withstand normal operation at high temperatures, and are suitable for industries such as steel mills, power plants, mines, cement, boilers, lithium batteries, chemical engineering, sludge co firing, orange rod co firing, kiln bottom discharge, boiler discharge, vacuum sterilization, etc. Structural design and manufacturing can also be carried out according to user requirements to ensure safe and normal operation. The impeller spindle adopts comprehensive water cooling to avoid high-temperature deformation and affect concentricity.　　Variable frequency feeding valve/high-temperature rotary valve: used in the roasting workshop to control the supply of sulfur in the sulfur silo. Material bulk density t/m 3: 1.5. Conveying capacity t/h: 5. Size: DN200. Valve height/mm: H ≈ 420. Valve body (upper and lower shells) material: 304. Impeller: 304. Material temperature: 200~400 ℃, grade: 10kV, 380V/220V, 50Hz.　　Powder rotary valve, 4-inch card interface, DN100 316L material manual material is pharmaceutical powder, high temperature 200 ℃ steam sterilization.　　Material: desulfurization ash powder, high temperature resistance: 400-500 degrees, currently using stainless steel material.

　　(BGB)刮板式卸料閥/旋轉閥/星型卸料器系列適用于具有吸濕粘性和帶有靜電吸附性的粉粒物料?！　」伟逍读祥y的閥體下部的旋轉刮板自動將附在轉子料斗內的物料掛落?！　￠y體上開有清理口，便于定期清除旋轉閥內部的物料?！　√峁╂滘?qū)動、馬達直連驅動?！　」伟逍读祥y材質：碳鋼、不銹鋼系列等?！倦娫?微信咨詢：陳經理18068546632】　　常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粘料、粉料、超微粉體等?！倦娫?微信咨詢：陳經理18068546632】           《掃二維碼-添加 陳經理 微信-咨詢刮板式卸料閥》　　The (BGB) scraper type discharge valve/rotary valve/star shaped unloader series is suitable for powder materials with hygroscopic viscosity and electrostatic adsorption.　　The rotating scraper at the lower part of the valve body of the scraper discharge valve automatically hangs the material attached to the rotor hopper.　　There is a cleaning port on the valve body for regular removal of materials inside the rotary valve.　　Provide chain drive and motor direct drive.　　Material of scraper discharge valve: carbon steel, stainless steel series, etc.

　　卸料閥也稱星型卸料閥、旋轉閥、旋轉給料閥、旋轉供料器、喂料閥、分格輪，廣泛應用于建材行業作為料倉的卸料裝置。具有鎖風和連續給料的雙重作用。動力配置選用高質量減速電機。整體設計采用了國外先進設計思想，結構緊湊，維護方便，性能可靠?！　“惭b要點：喂料閥只適合于水平安裝。進口和出口法蘭之間必須安裝密封墊片(或石棉繩)，以免漏料。進口和出口法蘭之間必須安裝密封墊片(或石棉繩)，以免漏料。　　機械和電氣的安裝工作完成以后檢查以下各項：a) 所有的緊固螺釘均擰緊。b) 連接的完整性(軸端密封清掃用空氣氣路連接完畢)。c) 接電工作由專 業電工完成。初次啟動必須不帶物料，在確信回轉下料閥轉動無任何故障并且在機殼中的轉子無啟動噪音之后即可向系統供料。【電話/微信咨詢：陳經理18068546632】            《掃二維碼-添加 陳經理 微信-咨詢耐磨碳鋼卸料閥》

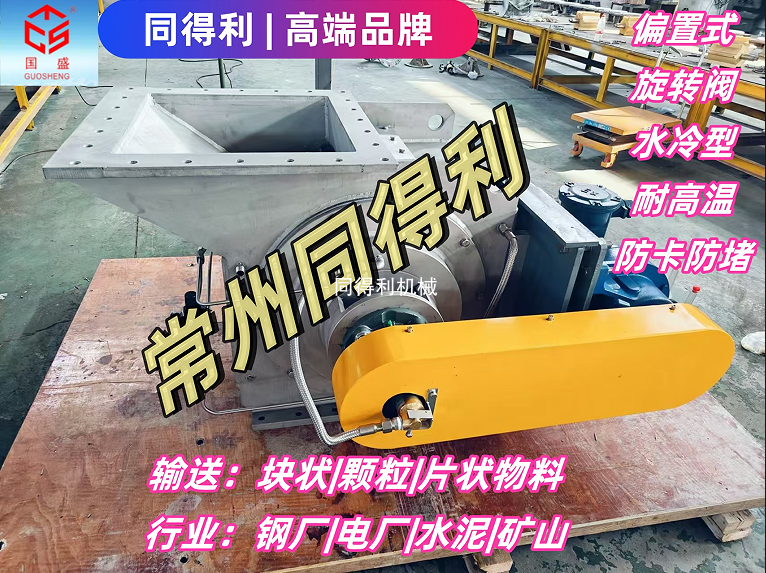

　　偏置式旋轉閥適用于≤2kg/cm2系統壓力或壓差。　　設置排氣口(正壓輸送時選用)將葉輪旋轉帶出的氣體通過排氣口送至排氣裝置，提高填充效率?！　》狼辛先肟谠O(shè)計，即便上游充滿物料也可安全啟動。偏置式進出料口設計：減少了物料的破碎與損壞?！　∑檬叫D(zhuǎn)閥主要用于鋼廠、電廠、水泥、礦山原料輸送?！倦娫?微信咨詢：陳經理18068546632】        《掃二維碼-添加 陳經理 微信-咨詢鏈驅動偏置式旋轉閥》　　Biased rotary valves are suitable for system pressures or pressure differentials of ≤ 2kg/cm 2.　　Set up an exhaust port (selected for positive pressure conveying) to send the gas carried out by the impeller rotation to the exhaust device through the exhaust port, improving the filling efficiency.　　Anti cutting material inlet design ensures safe start-up even when the upstream is filled with materials. Offset inlet and outlet design: reduces material breakage and damage.　　Offset rotary valves are mainly used for conveying raw materials in steel mills, power plants, cement, and mines.
