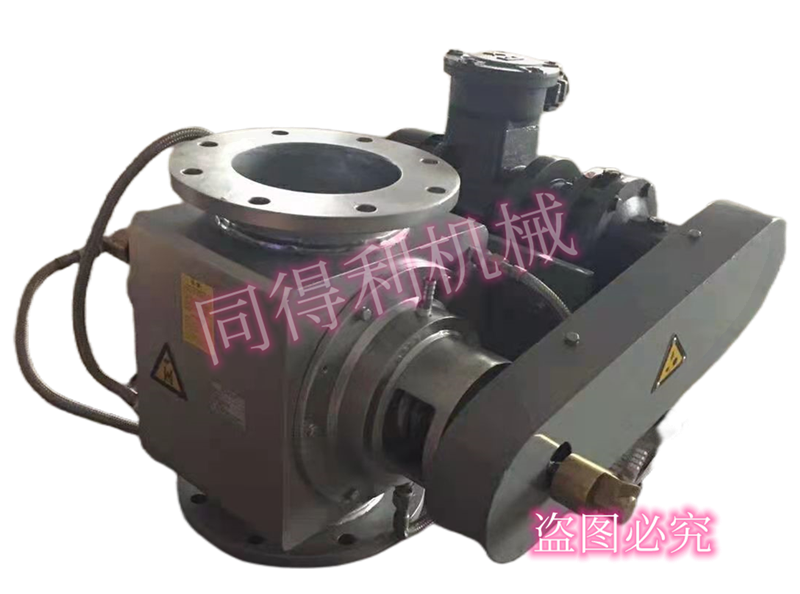

此產品是由本公司自主研制，材質選用310S，配合水冷，起到耐高溫作用。本產品優點是殼體、葉輪軸、端蓋單獨增加水冷系統，使高溫對閥造成的危害降低，使用壽命大大增加，倍受電廠鋼廠鍋爐等單位的青睞，避免了頻繁更換卸料閥帶來的不便，也大大減少了使用成本。【電話/微信咨詢：陳經理18068546632】      《掃二維碼-添加 陳經理 微信-咨詢產品/報價》

本產品適用于易粘接物料、腐蝕性物料的卸料，多用于化工企業。

　　電動鎖氣器/鎖氣閥適用于火力發電廠除塵器、空氣預熱器，省煤器等設備的出料口，或干灰輸送管道中，作鎖氣及均勻給料。也可用于化工廠、水泥廠、糧食加工廠部門的氣力運輸管道中。　　電動鎖氣器/鎖氣閥結構與型式：　　主要結構有殼體、轉子、傳動結構(擺線針輪減速機、電動機)。【電話/微信咨詢：陳經理18068546632】　　裝置型式主要有兩種：　　轉動機構與轉子直線聯接，一字排開--直連式?！　∞D動機構與轉子用鏈條搭接--平行軸線式?！　≡谥边B式中，又可細分為帶角鐵支架以配裝臥式減速機(加注B)以及經聯軸節直接聯接立式減速機的型式(加注A)　　備注：可定制非標型?！倦娫?微信咨詢：陳經理18068546632】        《掃二維碼-添加 陳經理 微信-咨詢電動鎖氣器/鎖氣閥》　　Electric air lock/air lock valve is suitable for the discharge ports of dust collectors, air preheaters, economizers and other equipment in thermal power plants, or in dry ash conveying pipelines, for air lock and uniform feeding. It can also be used in pneumatic transportation pipelines of chemical plants, cement plants, and grain processing plants.　　Electric air lock/lock valve structure and type:　　The main structures include shell, rotor, and transmission structure (cycloidal pinwheel reducer, electric motor).　　There are two main types of devices:　　The rotating mechanism is linearly connected to the rotor, arranged in a straight line - direct connection.　　The rotating mechanism and rotor are overlapped with chains - parallel axis type.　　In direct connection, it can be further divided into two types: those with angle iron brackets to install horizontal reducers (note B) and those directly connected to vertical reducers through couplings (note A)　　Note: Non standard models can be customized.

　　關風機又稱卸料器、星型卸料閥、旋轉閥、旋轉卸料閥、旋轉給料器、鎖氣閥、電動鎖氣器、旋轉供料閥，通常星型卸料器的結構是由帶有數片葉片的轉子葉輪、殼體、密封件及減速器、電動機等組成?！倦娫?微信咨詢：陳經理18068546632】　　T(B)GFY型不銹鋼強力組合關風機系列：　　壓力范圍：0.5kg/cm2系統壓力或壓差?！　￡P風機入口/出口：入口為圓口并配有透明視窗，以便觀察物料的流動狀況;出口為方形，增大了出口面積使物料順利排出?！　∑胀ㄐ停航Y構緊湊，占用空間小?！　≥S承外置式：有效的防止粉塵侵入軸承?！　◎寗臃绞剑厚R達直連驅動為主?！　恿ε渲茫簲[線針輪減速機、Y系列電機(可按需方指定動力配置)?！　〔馁|選項：碳鋼、鑄鐵、不銹鋼、鋁合金、鈦合金、四氟、陶瓷、PPC系列、尼龍、特氟龍等?！倦娫?微信咨詢：陳經理18068546632】　　常州同得利機械廠擁有多年的研發生產/定制關風機，卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的關風機/旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粘料、粉料、超微粉體等。【電話/微信咨詢：陳經理18068546632】《掃二維碼-添加 陳經理 微信-咨詢T(B)GFY型不銹鋼關風機/關風器》　　Shutter fan, also known as unloader, star shaped unloader valve, rotary valve, rotary unloader valve, rotary feeder, air lock valve, electric air lock valve, rotary feeding valve, is usually composed of a rotor impeller with several blades, a housing, seals, a reducer, an electric motor, etc.　　T (B) GFY stainless steel strong combination fan series　　Pressure range: 0.5kg/cm 2 system pressure or pressure difference.　　Entrance/Exit: The entrance is circular and equipped with a transparent window for observing the flow of materials; The exit is square, increasing the exit area to facilitate the smooth discharge of materials.　　Ordinary type: compact structure and small space occupation.　　External bearing: effectively prevents dust from entering the bearing.　　Drive mode: Mainly driven by direct motor connection.　　Power configuration: Cycloid pinwheel reducer, Y series motor (power configuration can be specified by the demand).　　Material options: carbon steel, cast iron, stainless steel, aluminum alloy, titanium alloy, PTFE, ceramic, PPC series, nylon, PTFE, etc.

　　關風機入口/出口：入口為圓口并配有透明視窗，以便觀察物料的流動狀況;出口為方形增大了出口面積使物料順利排出?！　∑胀ㄐ停航Y構緊湊，占用空間小?！　≥S承外置式：防止粉塵侵入軸承、增大適應溫度的范圍?！　≥S承外置式安裝、性能優異?！　◎寗臃绞剑厚R達直聯驅動為主、鏈驅動?！　￡P風機材質：碳鋼、鑄鐵、不銹鋼、陶瓷、尼龍、四氟、特氟龍、鈦合金、鋁合金、各種合金系列等。【電話/微信咨詢：陳經理18068546632】　　關風機的安裝：　　1、檢查產品經過運輸或貯藏后是否損壞銹蝕;葉輪應能靈活轉動。　　2、與關風器的結合平面應平整，平面度不大于0.5mm，以免機殼變形引起故障?！　?、關風器安裝后要校正水平，緊固固定螺栓，葉輪能靈活轉動無障礙?！倦娫?微信咨詢：陳經理18068546632】　　我公司專 業生產(B)GFY、YJD系列關風機(關風器)、星型卸料器、DS系列電動鎖氣器、DN型旋轉閥，快開閥、清潔閥、風送式旋轉閥等產品。廣泛應用于鋰電池、糧食、飼料、石油化工、制藥、淀粉、油脂、化工干燥、塑料、除塵、冶金、環保、電子、煤炭、建筑、電力機械等行業設備上。用于固體粒料、粉料、超微粉體在氣力輸送及管網正負壓狀態下的卸料。           《掃二維碼-添加 陳經理 微信-咨詢風送式關風機》　　Shut down the inlet/outlet of the fan: The inlet is circular and equipped with a transparent window for observing the flow of materials; The square shape of the outlet increases the outlet area and facilitates the smooth discharge of materials.　　Ordinary type: compact structure and small space occupation.　　External bearing: prevents dust from entering the bearing and increases the temperature adaptability range.　　External installation of bearings, excellent performance.　　Drive mode: mainly direct motor drive, chain drive.　　Material of the fan: carbon steel, cast iron, stainless steel, ceramic, nylon, PTFE, PTFE, titanium alloy, aluminum alloy, various alloy series, etc.　　Installation of shutdown fan:　　1. Check whether the product is damaged or corroded after transportation or storage; The impeller should be able to rotate flexibly.　　2. The joint plane with the air conditioner should be flat, with a flatness of no more than 0.5mm, to prevent deformation of the casing and potential malfunctions.　　3. After the installation of the air conditioner, it is necessary to calibrate the level, tighten the fixing bolts, and ensure that the impeller can rotate flexibly without obstacles.

　　【偏置式星型卸料器系列】　　適用于≤2kg/cm2系統壓力或壓差?！　≡O置排氣口(正壓輸送時選用)將葉輪旋轉帶出的氣體通過排氣口送至排氣裝置，提高填充效率?！　∑眯读掀鞣狼辛先肟谠O計，即便上游充滿物料也可安全啟動?！　∑檬竭M出料口設計，減少了物料的破碎與損壞?！倦娫?微信咨詢：陳經理18068546632】　　軸承外置式安裝、經久耐用、性能優異?！　√峁╂滘寗印⒅甭?lián)驅動多種安裝方式?！　「鶕?jù)需求配置減速機電機?！　∑眯读掀鞑馁|主要有：鑄鋼、不銹鋼、合金系列等?！　んw及主要零部件采用精密鑄造，外形美觀;　　高強度的閥體及軸，可承受高壓且運轉平穩;　　特殊防卡料設計，避免運轉中粒子剪斷現象;【電話/微信咨詢：陳經理18068546632】　　常州同得利機械廠擁有多年的研發生產/定制卸料閥旋轉閥的經驗，秉承質量第 一、用戶至 上的原則。我們的旋轉閥能夠處理鋰電池、鋼廠、電廠、水泥、礦山、環保、塑料、化工、食品和醫藥等行業的各種顆粒、片狀、塊狀物料、粘料、粉料、超微粉體等。       《掃二維碼-添加 陳經理 微信-咨詢偏置式卸料器》　　Offset star shaped unloader series　　Suitable for system pressures or pressure differentials of ≤ 2kg/cm 2.　　Set up an exhaust port (selected for positive pressure conveying) to send the gas carried out by the impeller rotation to the exhaust device through the exhaust port, improving the filling efficiency.　　The offset unloader is designed with an anti cutting material inlet, which can be safely started even if the upstream is filled with material.　　The offset inlet and outlet design reduces material breakage and damage.　　External installation of bearings, durable and excellent performance.　　Provide multiple installation methods for chain drive and direct drive.　　Configure the gearbox motor according to the requirements.　　The materials of offset unloaders mainly include cast steel, stainless steel, alloy series, etc.　　The shell and main components are precision cast, with a beautiful appearance;　　High strength valve body and shaft, capable of withstanding high pressure and running smoothly;　　Special anti jamming material design to avoid particle shearing during operation.

　　星型卸料器/卸料閥是氣力輸送系統中的關鍵設備。也是除塵和加料系統的常用設備。根據特性、用途和使用條件的不同，星型卸料器有多種結構型式，星型卸料器的選型要根據被輸送物料的特性如堆積密度、物料溫度、吸潮性、含水量、粒徑、流動性、硬度、腐蝕性等來決定的?！　〕Ｖ萃美麢C械廠主要制造適用于粘性的，含堅硬雜質的以及高溫高壓或高真空情況下使用的特殊結構的星型卸料器。以及超小尺寸的卸料器，都是非常規結構特殊非標定制?！倦娫?微信咨詢：陳經理 18068546632】　　不銹鋼卸料器可應用于食品等有高衛生要求的場合，拆卸方便，易于進行清理工作，符合高要求的衛生標準。操作方便，無死點。     《掃二維碼-添加 陳經理 微信-咨詢食品級卸料閥》　　Star shaped unloader/discharge valve is a key equipment in pneumatic conveying systems. It is also a commonly used equipment for dust removal and feeding systems. According to different characteristics, purposes, and usage conditions, star shaped unloaders have various structural types. The selection of star shaped unloaders should be determined based on the characteristics of the conveyed material, such as bulk density, material temperature, moisture absorption, moisture content, particle size, flowability, hardness, corrosiveness, etc.　　Changzhou Tongdeli Machinery Factory mainly manufactures star shaped unloaders with special structures suitable for viscous, hard impurity containing, and high-temperature, high-pressure, or high vacuum conditions. And the ultra small size unloaders are all customized with unconventional structures and special non-standard designs.　　Stainless steel unloaders can be used in places with high hygiene requirements such as food. They are easy to disassemble and clean, meeting high hygiene standards. Easy to operate, no dead spots.

　　快速清洗型旋轉閥廣泛應用于食品、醫藥、化工對衛生高要求場合，以及更換物料頻繁需要清理卸料的系統。按操作形式可分為滑桿式和快開式，易于快速清理葉腔中粘性物料，安裝方便。　　1.滑桿式旋轉閥：清洗前的拆卸。松開活動瑞蓋上的螺旋手柄，沿柱將瑞蓋和轉子一起拉出，松開軸端的螺旋手柄，取出轉子。　　2.快開門式旋轉閥：松開固定螺栓，打開端蓋門，抽出轉子，清洗后轉子推入殼體內，旋緊定位螺栓?！倦娫?微信咨詢：陳經理 18068546632】　　結構緊湊：采用行星轉動原理、純銅電機，輸入輸出在同一軸線上，而且有與電機直聯一體的獨特性，體積小，重量輕，因而結構緊湊造型美觀新樣?！　∧湍バ愿撸哼\行可靠平穩，噪音低，故障少，壽命長，耐磨性高。　　過載能力強：卸料器具有過載能力強，耐沖擊慣性力矩小，適用于啟動頻繁和正反轉。【電話/微信咨詢：陳經理 18068546632】           《掃二維碼-添加 陳經理 微信-咨詢不銹鋼清洗型旋轉閥》　　Quick cleaning rotary valves are widely used in food, medicine, chemical industries with high hygiene requirements, as well as systems that require frequent cleaning and unloading of materials. According to the operating form, it can be divided into sliding rod type and quick opening type, which is easy to quickly clean viscous materials in the blade cavity and easy to install.　　1. Sliding rod rotary valve: disassembly before cleaning. Release the spiral handle on the activity cover, pull out the cover and rotor together along the column, release the spiral handle on the shaft end, and remove the rotor.　　2. Quick opening rotary valve: Loosen the fixing bolts, open the end cover door, extract the rotor, clean it, push the rotor into the housing, and tighten the positioning bolts.　　Compact structure: Adopting the principle of planetary rotation and a pure copper motor, the input and output are on the same axis, and it has the unique feature of being directly connected to the motor. It is small in size and light in weight, resulting in a compact structure and beautiful appearance.　　High wear resistance: reliable and stable operation, low noise, few faults, long service life, high wear resistance.　　Strong overload capacity: The unloader has strong overload capacity, low impact resistance inertia moment, and is suitable for frequent starting and forward and reverse rotation.

【風送滑桿式旋轉閥】耐高溫主要結構：外殼金屬;物料接觸部分：內襯陶瓷(也可碳化鎢、尼龍、四氟、特氟龍、聚氨酯、不銹鋼、合金等)。主要用于化工、食品、藥材、鋰電原料輸送。針對物料粘接，風力直吹轉子清理?？觳鹎謇恚焖購臀?。軸承外置式：有效的防止粉塵侵入軸承，增大設備適應較高溫度的使用范圍。驅動方式：鏈驅動/馬達直連驅動口?！倦娫?微信咨詢：陳經理18068546632】動力配置：擺線針輪減速機、Y系列電機(可按需方指定動力配置)。主要材料：不銹鋼304-316.陶瓷氧化鋁，碳鋼、鑄鐵、不銹鋼、鋁合金、鈦合金、陶瓷系列等。          《掃二維碼-添加 陳經理 微信-咨詢風送滑桿式旋轉閥》 Wind driven sliding rod rotary valveMain structure: metal shell; Material contact part: lined with ceramics (also tungsten carbide, nylon, PTFE, PTFE, polyurethane, stainless steel, alloys, etc.).Mainly used for transporting chemical, food, medicinal materials, and lithium battery raw materials.For material bonding, clean the rotor with direct wind blowing. Quick disassembly and cleaning, quick reset.External bearing: effectively prevents dust from entering the bearing and increases the equipment's adaptability to higher temperatures.Drive mode: chain drive/motor directly connected to the drive port.Power configuration: Cycloid pinwheel reducer, Y series motor (power configuration can be specified by the demand).Main materials: stainless steel 304-316. ceramic alumina, carbon steel, cast iron, stainless steel, aluminum alloy, titanium alloy, ceramic series, etc.

【風送式卸料閥】正壓輸送壓力范圍：2kg/cm2系統壓力或壓差。增大入口/出口：正方形，沒有截面尺寸對料流的限 制從而可達高產量。普通型：結構緊湊，占用空間小。軸承外置式：有效的防止粉塵侵入軸承，增大設備適應較高溫度的使用范圍。【電話/微信咨詢：陳經理18068546632】驅動方式：鏈驅動/馬達直連驅動口。動力配置：擺線針輪減速機、Y系列電機(可按需方指定動力配置)。材質選項：碳鋼、鑄鐵、不銹鋼、鋁合金、鈦合金、陶瓷系列等。【電話/微信咨詢：陳經理18068546632】風送式卸料閥主要用于化工、食品、藥材、原料輸送。           《掃二維碼-添加 陳經理 微信-咨詢風送卸料閥》Pressure range: 2kg/cm 2 system pressure or pressure difference.Increase inlet/outlet: Square, without cross-sectional size restrictions on material flow, thus achieving high yield.Ordinary type: compact structure and small space occupation.External bearing: effectively prevents dust from entering the bearing and increases the equipment's adaptability to higher temperatures.Drive mode: chain drive/motor directly connected to the drive port.Power configuration: Cycloid pinwheel reducer, Y series motor (power configuration can be specified by the demand).Material options: carbon steel, cast iron, stainless steel, aluminum alloy, titanium alloy, ceramic series, etc.Pneumatic discharge valves are mainly used for chemical, food, medicinal, and raw material transportation.
