防卡型旋轉閥主要用于顆粒料、塊狀料、片狀料和重力下料和氣力輸送卸料，配備特殊防卡結構的導流槽。一般采用V型進料口，葉片頂端倒角;一體式閥體排氣口。

　　法蘭形式：圓形、方形、偏置式。

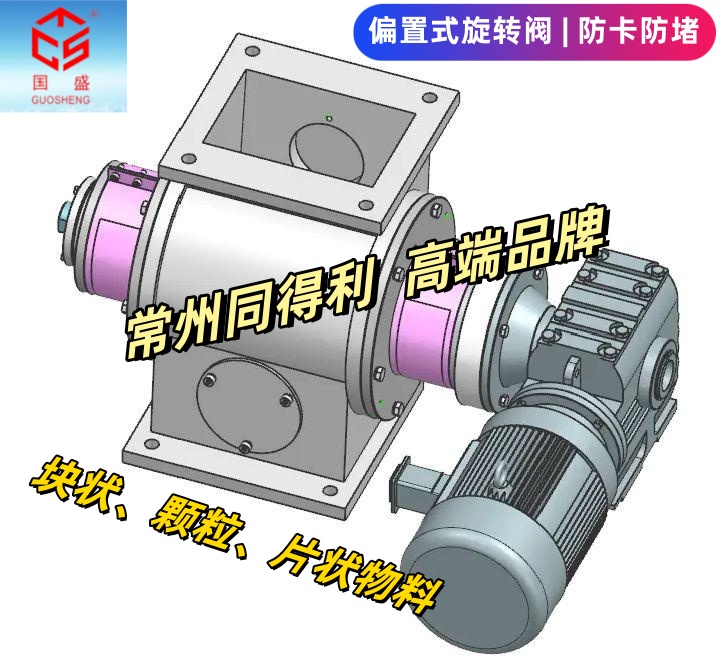

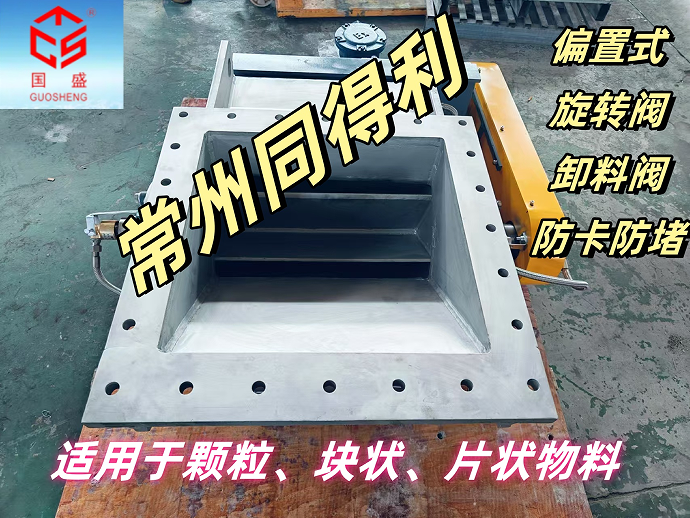

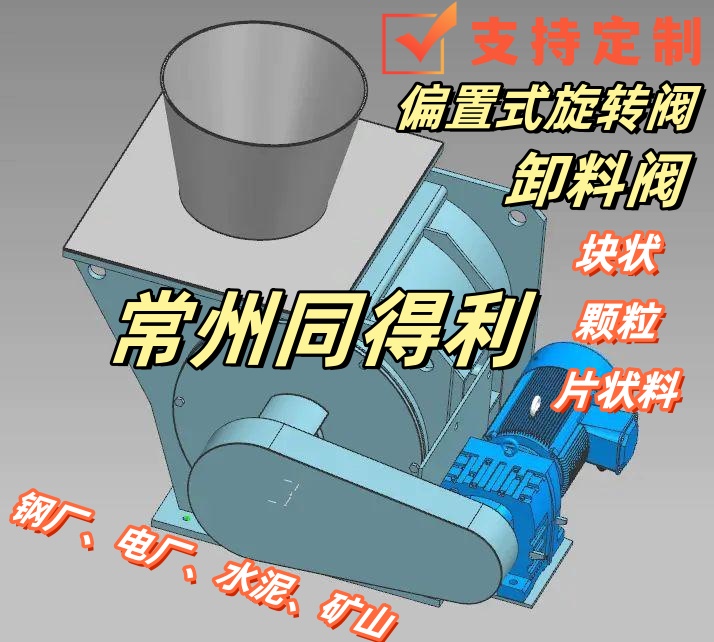

　　偏置式旋轉閥主要用于鋼廠、電廠、水泥、礦山原料輸送。適用于塊狀、顆料、片狀物料，起到很好的防卡防堵作用。【電話/微信咨詢：陳經理18068546632】

　　1.適用于≤4kg/cm2系統壓力或壓差。

　　2.設置排氣口(正壓輸送時選用)將葉輪旋轉帶出的高壓氣體通過排氣口送至排氣裝置，提高填充效率。

　　3.防切料入口設計，即便上游充滿物料也可安全啟動。

　　4.軸承外置式安裝、經久耐用、性能優異。

　　5.提供鏈驅動、直聯驅動多種安裝方式。

　　6.根據需求配置減速機電機。

　　7.材質主要有:不銹鋼304-310系列、鋁合金、鈦合金等。【電話/微信咨詢：陳經理18068546632】

　　我公司專 業生產(B)GFY、YJD系列關風機(關風器)、星型卸料器、DS系列電動鎖氣器、DN型旋轉閥，快開閥、清潔閥、風送式旋轉閥等產品。廣泛應用于鋰電池、糧食、飼料、石油化工、制藥、淀粉、油脂、化工干燥、塑料、除塵、冶金、環保、電子、煤炭、建筑、電力機械等行業設備上。用于固體粒料、粉料、超微粉體在氣力輸送及管網正負壓狀態下的卸料。【電話/微信咨詢：陳經理18068546632】

       《掃二維碼-添加 陳經理 微信-咨詢偏置式旋轉閥》

　　Anti jamming rotary valves are mainly used for granular materials, block materials, sheet materials, gravity feeding, and pneumatic conveying unloading, equipped with special anti jamming structure guide grooves. Generally, a V-shaped feed inlet is used with chamfered blade tips; Integrated valve body exhaust port.

　　Flange forms: circular, square, offset.

　　Offset rotary valves are mainly used for conveying raw materials in steel mills, power plants, cement, and mines. Suitable for block, particle, and sheet materials, it has a good anti jamming and anti blocking effect.

　　1. Suitable for system pressures or pressure differentials of ≤ 4kg/cm2.

　　2. Set up an exhaust port (selected for positive pressure conveying) to send the high-pressure gas carried out by the impeller rotation to the exhaust device through the exhaust port, improving the filling efficiency.

　　3. Anti cutting material inlet design, even if the upstream is filled with materials, it can be safely started.

　　4. The bearing is externally installed, durable, and has excellent performance.

　　5. Provide multiple installation methods for chain drive and direct drive.

　　6. Configure the gearbox motor according to the requirements.

　　7. The main materials include stainless steel 304-310 series, aluminum alloy, titanium alloy, etc.

　　Our company specializes in the production of (B) GFY, YJD series air shut-off fans (air shut-off devices), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening valves, cleaning valves, pneumatic rotary valves and other products. Widely used in equipment for industries such as lithium batteries, grain, feed, petrochemicals, pharmaceuticals, starch, oils and fats, chemical drying, plastics, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid granules, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure in pipeline networks.
