不銹鋼風送式旋轉閥壓力范圍：2kg/cm2系統壓力或壓差。

　　增大入口/出口：正方形，沒有截面尺寸對料流的限 制從而可達高產量。

　　普通型：結構緊湊，占用空間小。

　　軸承外置式：有效的防止粉塵侵入軸承，增大設備適應較高溫度的使用范圍。

　　驅動方式：鏈驅動/馬達直聯驅動。

　　動力配置：擺線針輪減速機、Y系列電機(可按客戶指定動力配置)。

　　材質選項：不銹鋼、鋁合金、鈦合金、陶瓷、碳鋼等。【電話/微信咨詢：陳經理18068546632】

　　我公司專 業生產(B)GFY、YJD系列關風機(關風器)、星型卸料器、DS系列電動鎖氣器、DN型旋轉閥，快開閥、清潔閥、風送式旋轉閥等產品。廣泛應用于糧食、飼料、石油化工、制藥、淀粉、油脂、化工干燥、除塵、冶金、環保、電子、煤炭、建筑、電力機械等行業設備上。用于固體粒料、粉料、超微粉體在氣力輸送及官網正負壓狀態下的卸料。

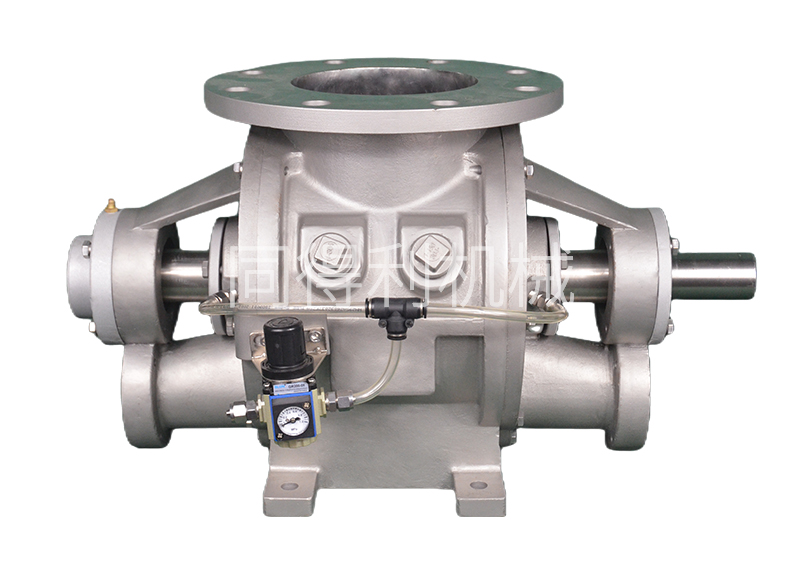

　　Stainless steel pneumatic rotary valve pressure range: 2kg/cm 2 System pressure or differential pressure.

　　Increase the inlet/outlet: square, with no restrictions on material flow due to cross-sectional size, achieving high production.

　　Normal type: compact structure, occupying small space.

　　External bearing type: effectively prevents dust from entering the bearing, increasing the equipment's adaptability to higher temperature usage range.

　　Drive mode: chain drive/motor direct drive.

　　Power configuration: cycloidal pinwheel reducer, Y-series motor (can be configured according to customer specifications).

　　Material options: stainless steel, aluminum alloy, titanium alloy, ceramic, carbon steel, etc.

　　Our company specializes in the production of (B) GFY, YJD series shut-off fans (shut-off fans), star shaped unloaders, DS series electric air locks, DN type rotary valves, quick opening valves, cleaning valves, pneumatic rotary valves, and other products. Widely used in industries such as grain, feed, petrochemicals, pharmaceuticals, starch, fats, chemical drying, dust removal, metallurgy, environmental protection, electronics, coal, construction, and power machinery. Used for unloading solid particles, powders, and ultrafine powders under pneumatic conveying and positive and negative pressure on the official website.

            《掃二維碼-添加 陳經理 微信-咨詢產品》
