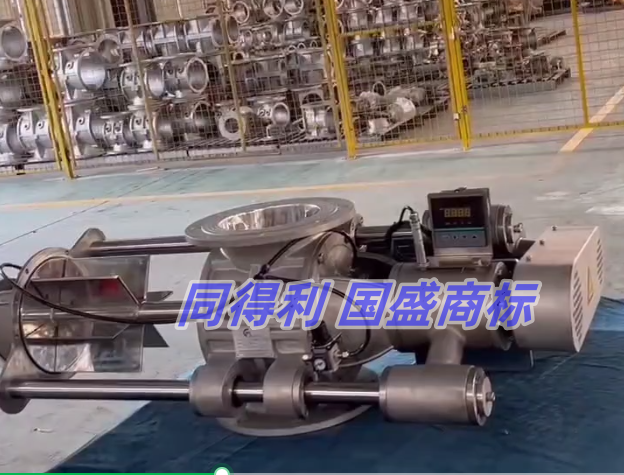

【風送滑桿式卸料閥】

主要結構：外殼金屬;物料接觸部分：內襯陶瓷(也可碳化鎢、尼龍、四氟、特氟龍、聚氨酯、合金、不銹鋼等)。

主要用于化工、食品、藥材、鋰電原料輸送。

針對物料粘接，風力直吹轉子清理?？觳鹎謇恚焖購?fù)位。

清洗前的拆卸。松開螺栓手柄，沿導柱將端蓋輕輕拉至極限，抽出葉輪，雙手握住葉輪兩端抽頸取出。清洗后，裝入葉輪(轉動葉輪使花鍵齒合)，推入端蓋(轉動活動軸柄使花鍵齒合)，擰緊螺栓手柄。【電話/微信咨詢：陳經理18068546632】

軸承外置式：有效的防止粉塵侵入軸承，增大設備適應較高溫度的使用范圍。

驅動方式：鏈驅動/馬達直連驅動口。

動力配置：擺線針輪減速機、Y系列電機(可按需方指定動力配置)。

主要材料：不銹鋼304-316、四氟、尼龍、鈦合金、鋁合金、各種合金等。【電話/微信咨詢：陳經理 18068546632】

我公司專 業生產(B)GFY、YJD系列關風機(關風器)、星型卸料器、DS系列電動鎖氣器、DN型旋轉閥，快開閥、清潔閥、風送式旋轉閥等產品。廣泛應用于鋰電池、糧食、飼料、石油化工、制藥、淀粉、油脂、化工干燥、塑料、除塵、冶金、環保、電子、煤炭、建筑、電力機械等行業設備上。用于固體粒料、粉料、超微粉體在氣力輸送及管網正負壓狀態下的卸料。

       《掃二維碼-添加 陳經理 微信-咨詢風送滑桿式卸料閥》

Wind driven sliding rod unloading valve

Main structure: metal shell; Material contact part: lined with ceramic (also tungsten carbide, nylon, PTFE, PTFE, polyurethane, alloy, stainless steel, etc.).

For material bonding, clean the rotor with direct wind blowing. Quick disassembly and cleaning, quick reset.

Disassemble before cleaning. Release the bolt handle, gently pull the end cover along the guide column to the limit, extract the impeller, and hold both ends of the impeller with both hands to remove the neck. After cleaning, install the impeller (rotate the impeller to engage the spline teeth), push in the end cover (rotate the movable shaft handle to engage the spline teeth), and tighten the bolt handle.

External bearing: effectively prevents dust from entering the bearing and increases the equipment's adaptability to higher temperatures.

Drive mode: chain drive/motor directly connected to the drive port.

Power configuration: Cycloid pinwheel reducer, Y series motor (power configuration can be specified by the demand).

Main materials: stainless steel 304-316. PTFE, nylon, titanium alloy, aluminum alloy, various alloys, etc.
